Geekvape Aegis Legend 5 Starter Kit
Regular price
$127.00
Sale price
$127.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

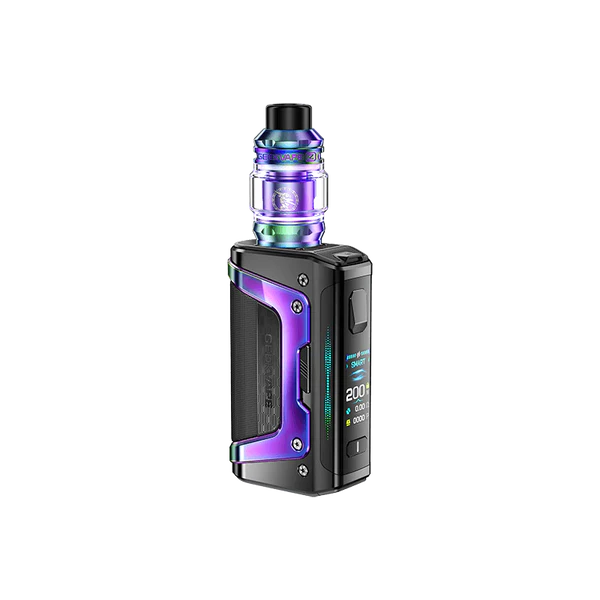

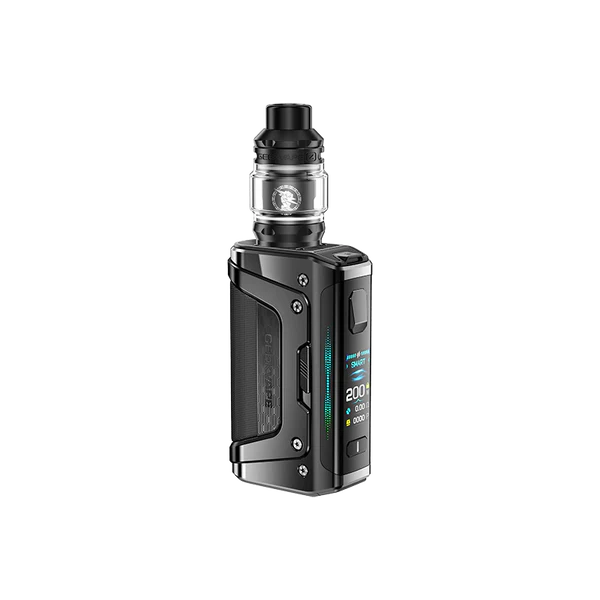

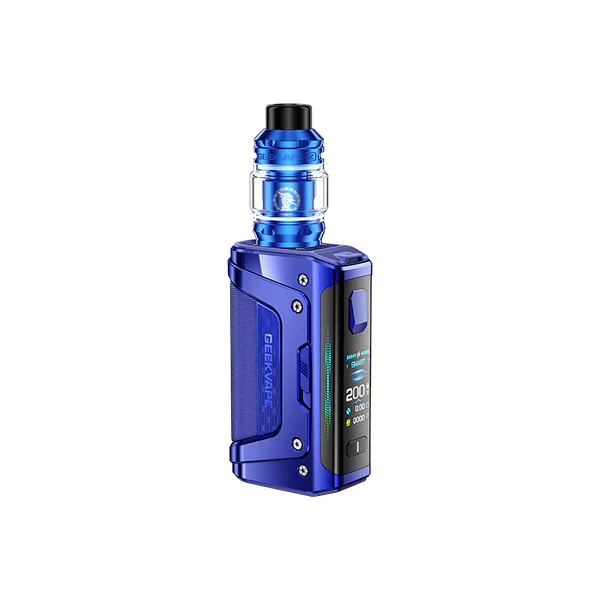

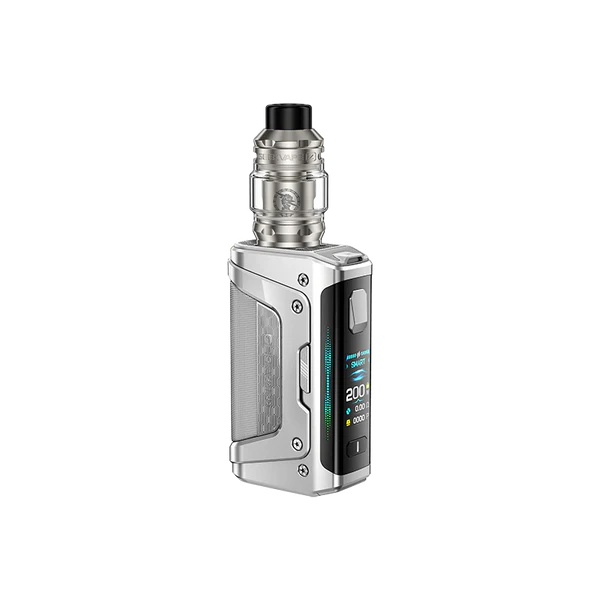

The Geekvape Aegis Legend 5 is a 200W dual-18650 box mod built for durability — IP68 rated for water resistance (up to 1.5m for 30 minutes), dustproof, and shockproof. It ships as a complete starter kit with the Z Sub-Ohm Tank (5.5mL), two Z Series mesh coils, and the AS Chip 4.0 chipset with 0.01-second firing speed. This is not a pod kit — it's a full-power sub-ohm setup designed for direct-to-lung (DTL) vaping, big clouds, and rich flavour at high wattage. Available in 8 colours.
18650 batteries are NOT included. This kit requires two high-drain 18650 batteries (sold separately). If you don't already own 18650s and a charger, you'll need to pick those up as well. Check our Batteries & Chargers collection, or ask our staff for a recommendation.
Quick Links: Replacement Coils · Batteries & Chargers · Freebase E-Liquids
Mod Specs
| Spec | Details |
|---|---|
| Wattage | 5–200W |
| Battery | Dual 18650 (external, not included) |
| Chipset | AS Chip 4.0 (0.01s firing speed) |
| Display | 1.08" TFT colour screen with dynamic LED strips |
| Charging | USB-C (on-board), external charger recommended |
| Durability | IP68 — waterproof (1.5m/30min), dustproof, shockproof |
| Material | Zinc alloy with rubber/leather grip accents |
| Dimensions | 146mm × 56mm × 26mm |
| Resistance Range | 0.1–2.0Ω (mod) |
| Max Voltage | 12V |
| Max Current | 45A |
| Vaping Modes | Smart / Normal / ECO / Custom / TC (Ni/Ti/SS) |
| Safety | A-Lock physical slide switch, overheat/short-circuit protection |
| 510 Connection | Yes (spring-loaded, fits tanks up to 25mm) |
Tank Specs
| Spec | Details |
|---|---|
| Tank | Z Sub-Ohm Tank 2021 |
| Capacity | 5.5mL (spare glass included) |
| Fill System | Top-fill (flip-top) |
| Airflow | Adjustable bottom airflow |
| Coil Platform | Geekvape Z Series (press-fit installation) |
| Included Coils | Z0.15 XM (0.15Ω, 70–85W) pre-installed · Z0.4 XM (0.4Ω, 50–60W) spare |
| Drip Tip | 810 |
| Connection | 510 threaded |
Built to Survive
The Aegis line has been the go-to rugged vape platform for years, and the Legend 5 continues that reputation. The IP68 rating means it's certified waterproof up to 1.5 metres for 30 minutes, completely dustproof, and rated for shock resistance from drops up to 1.4 metres. The rubber/leather grip panels and zinc alloy chassis are designed for job sites, outdoor work, hiking, and generally rough daily use where a standard mod wouldn't survive.
The A-Lock is a physical slide switch on the side that locks the fire button and controls — no accidental pocket fires, no fumbling with 5-click sequences.
Vaping Modes
Smart Mode auto-detects your coil resistance and sets an appropriate wattage. Normal Mode gives you full manual wattage control. ECO Mode reduces output slightly to extend battery life — useful at moderate wattages where the difference is negligible. Custom Mode lets you save preset wattage configurations. TC Mode supports Ni200, Ti, and SS316 wires for temperature control builds.
What's in the Box
📦 Full Kit Contents
1× Aegis Legend 5 mod (batteries NOT included) · 1× Z Sub-Ohm Tank 2021 (5.5mL) · 1× Z0.15 XM coil 0.15Ω (pre-installed, 70–85W) · 1× Z0.4 XM coil 0.4Ω (spare, 50–60W) · 1× Spare glass tube (5.5mL) · 1× Spare parts pack (O-rings) · 1× USB-C cable · 1× User manual + warning cards
Compatible E-Liquids
The Z Sub-Ohm Tank is designed for direct-to-lung (DTL) vaping with freebase e-liquid in the 3–6mg range. The sub-ohm mesh coils and wide-open airflow are built for high-VG blends (70/30 or higher) that produce dense clouds and rich flavour. Salt nicotine is not recommended — the low resistance and high wattage would deliver far too much nicotine per puff.
Browse our full freebase e-liquid collection for compatible juices.
This is a sub-ohm kit for experienced vapers. If you're new to vaping or prefer a tighter, cigarette-style draw, a refillable pod kit like the Vaporesso XROS Pro 2, Uwell Caliburn G4 Pro, or OXVA Xlim Pro 3 is a better starting point. Those devices use salt nic, require no external batteries, and are designed for mouth-to-lung draws.
Frequently Asked Questions
Are batteries included?
No. The Aegis Legend 5 requires two high-drain 18650 batteries, sold separately. You'll also want an external charger for daily use — on-board USB-C charging works but an external charger is better for battery longevity. Check our Batteries & Chargers collection.
What coils does it use?
The Z Sub-Ohm Tank uses Geekvape Z Series coils (press-fit installation). The kit includes a 0.15Ω XM coil (70–85W) pre-installed and a 0.4Ω XM coil (50–60W) as a spare. Additional Z Series coils in various resistances are available in our Replacement Coils collection.
Is it really waterproof?
The mod itself is IP68 rated — certified waterproof up to 1.5 metres for 30 minutes, dustproof, and shockproof. This applies to the mod body only, not the tank. It's designed to survive rain, splashes, drops, and dusty job sites — not for intentional submersion while vaping.
Can I use salt nic with this kit?
Not recommended. The Z Sub-Ohm Tank runs at high wattage with low-resistance mesh coils. Salt nicotine (typically 20mg+) would deliver far too much nicotine per puff at these power levels. Use freebase e-liquid in 3–6mg with this kit.
Who is this kit for?
Experienced DTL vapers who want high wattage, big clouds, and a durable device. The Aegis Legend 5 is popular with outdoor workers, tradespeople, and anyone who needs a vape that can survive rough handling. It's not a beginner device — if you're new to vaping, start with a pod kit instead.
What's the A-Lock?
A physical slide switch on the side of the mod that locks the fire button and all controls. It prevents accidental firing in your pocket or bag — no need to click 5 times or navigate menus. Slide it, and the mod is locked.
Can I use other tanks on the mod?
Yes — the Aegis Legend 5 mod has a standard 510 connection and fits tanks up to 25mm in diameter. You can use any 510-threaded tank, RDA, or RTA.
Can I buy the Aegis Legend 5 online in Canada?
Yes. Vaping The Way ships free across Canada on orders over $75.00, and offers free same-day delivery in Regina, Saskatchewan Monday through Friday. Also available at any of our 9+ stores across Saskatchewan and Alberta.
How fast is shipping?
Does it come with a warranty?
What happens if I don't like it?
What's the returns policy?
